Trajectory Builder

A learning trajectory application for creating and managing educational learning paths with episodes, tasks, student progress tracking, xAPI learning analytics, and Estonian national curriculum integration.

trajektoor.ee

// 01

Overview

Trajectory Builder enables teachers to create structured learning paths, trajectories composed of episodes and tasks, and deploy them as sessions that students enroll in via registration codes. The platform captures granular learning analytics through xAPI integration with H5P content, provides Bayesian prediction of learning outcomes, and connects all content to the Estonian national curriculum via cascading skill-bit mappings.

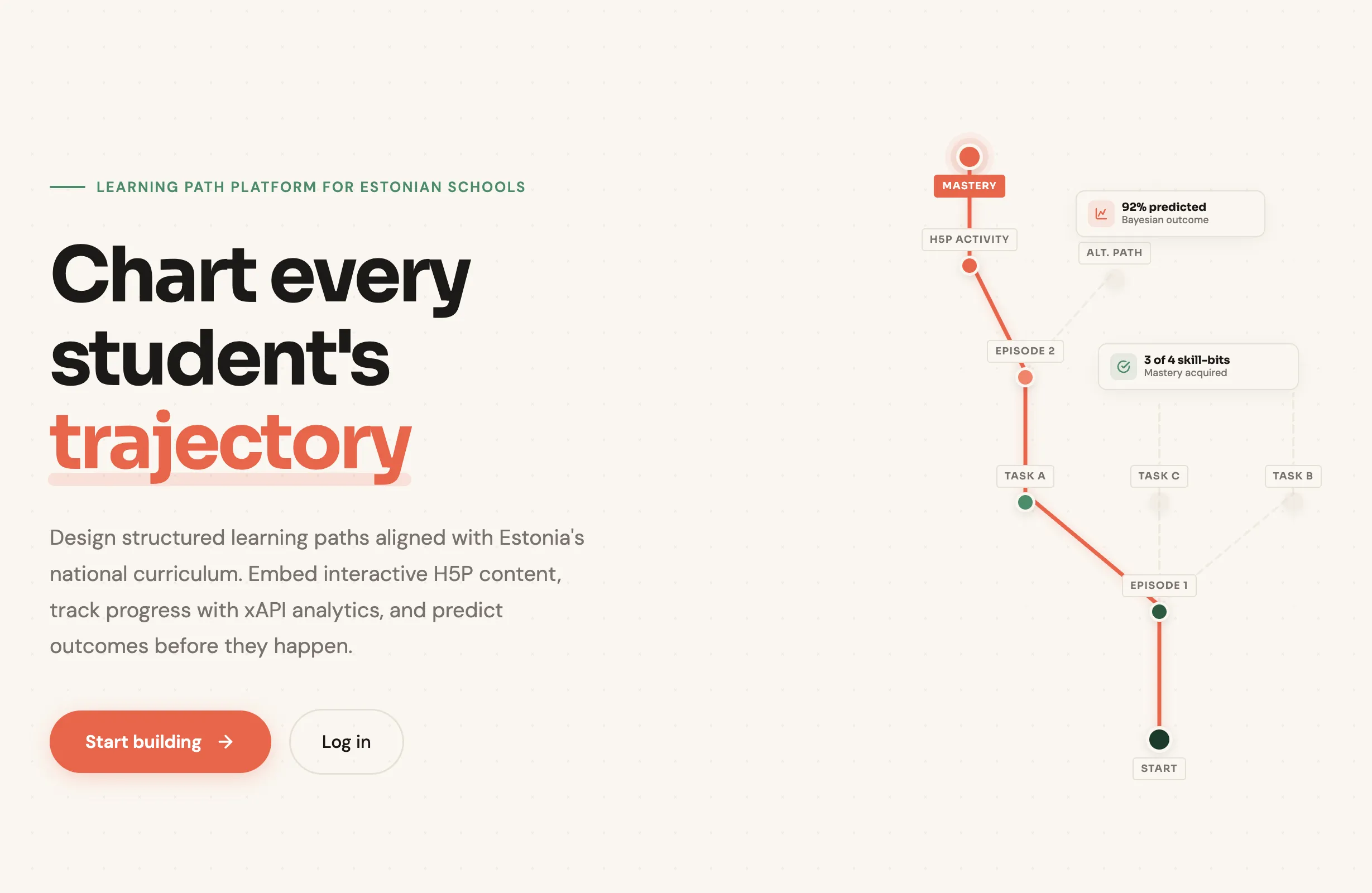

Trajectory Builder — learning path platform showing trajectory flow with episodes, tasks, skill-bit mastery, and Bayesian outcome prediction

Key Capabilities

  • Instructional Trajectory Management — hierarchical content organization with visual flow diagrams (Mermaid.js)
  • H5P Integration — search and embed interactive content from vara.h5p.ee
  • xAPI Learning Analytics — automatic capture and storage of learning statements from H5P interactions
  • xAPI-Gated Completion — resource completion gated by actual H5P performance, with smart fallbacks
  • Bayesian Outcome Prediction — success probability calculated from five weighted factors
  • Curriculum Integration — Estonian national curriculum via Curriculum API with cascading dropdowns and prerequisite hints
  • Role-Based Interfaces — separate teacher analytics dashboards and student progress views

// 02

Technical Architecture

Framework
Laravel, PHP
Admin Panel
Filament
Auth
Laravel Breeze
Database
MySQL
Media
Spatie Media Library
Styling
Tailwind CSS — custom earthy/cartographic theme with Sora + DM Sans typography
Interoperability
xAPI statements, LTI-compatible H5P embedding

Service Architecture

The application is organized around specialised service classes:

Service Responsibility
StudentProgressService Progress calculation, time analytics, xAPI metrics
TeacherInsightsService Session overview, heatmaps, at-risk detection
SuggestionEngine Personalised recommendations
LearningOutcomePredictionService Bayesian probability predictions
ResourceCompletionService xAPI-gated completion eligibility with fallback logic
CurriculumApiService Communication with Curriculum Tool API, local caching

// 03

xAPI Learning Analytics

When students interact with embedded H5P materials, xAPI statements are captured automatically via postMessage (origin-validated), stored with full context, and used to gate resource completion and power analytics dashboards.

xAPI-Gated Completion

For embedded H5P resources, the "Mark as Complete" button is disabled until xAPI interaction is detected. Smart defaults require no teacher configuration:

  • Embedded H5P resources — require xAPI interaction before completion
  • Non-embeddable H5P / plain resources — manual completion
  • Detection window — auto-enables after 60 seconds if H5P content type doesn't emit xAPI
  • Extended fallback — 5-minute fallback for cases where xAPI was detected but completion criteria weren't fully met

Teachers can override per-resource: auto-detect (default), manual, xAPI interaction, xAPI completion, or minimum score threshold.

Data Captured

Field Description
verb_display Action performed (completed, answered, interacted)
object_id H5P content identifier
result_parsed Scores, success, completion status
resource_id Link to specific learning resource
learning_session_id Link to student's enrolled session

Data is retained for 90 days, then automatically cleaned up.

// 04

Curriculum Integration

The application integrates with the Estonian national curriculum via the Curriculum Tool API. Curriculum data is fetched live and cached locally in the database.

Data Structure

  • School Levels → Subjects → Topics → Subtopics (optional)
  • Topics/Subtopics have Learning Outcomes
  • Learning Outcomes have Skill-bits (selectable for Episodes)
  • Learning Outcomes can have Prerequisites (warning hints)

Curriculum dropdowns cascade top-to-bottom: school level filters subjects (API-side), topics are filtered client-side to only show those with outcomes for the selected school level (cached 1hr), and outcomes are filtered by both topic and school level.

// 05

Bayesian Prediction Model

The system calculates success probability for learning outcomes using five weighted factors:

Factor Weight Description
Skill-bit mastery 35% Progress on associated micro-skills
xAPI performance 25% H5P interaction scores
Task completion 15% Completed vs total tasks
Prerequisites 15% Mastery of required prior knowledge
Time patterns 10% Appropriate time spent (not rushing/struggling)

Predictions update automatically when tasks are completed or xAPI statements are received.

// 06

Student & Teacher Interfaces

Student Dashboard

Progress view with overall completion percentage, episode-by-episode breakdown, skill-bit mastery grid, xAPI performance metrics, Bayesian predictions per learning outcome, personalized suggestions in Estonian, and quality badges showing best score and attempt count.

Teacher Dashboard

Session analytics with enrolled/active/at-risk student counts, progress heatmap (student × task matrix), at-risk student alerts with risk factors, task difficulty analysis, time estimation accuracy, skill-bit coverage rates, CSV data export, and individual student detail pages.

// 07

API Endpoints

xAPI Receiver

POST /student/xapi

Student Analytics

GET /student/session/{id}/progress
GET /student/session/{id}/skill-bits
GET /student/session/{id}/suggestions
GET /student/resources/{id}/completion-status?learning_session_id=X

Teacher Analytics

GET /teacher/session/{id}/analytics
GET /teacher/session/{id}/student/{user}
GET /teacher/session/{id}/export/csv
GET /teacher/session/{id}/heatmap-data

GET /api/h5p/search?q={query}

// 08

Data Privacy

  • xAPI data retained for 90 days maximum
  • Teachers see only their own sessions' data
  • Students see only their own progress
  • GDPR-compliant data handling
